Vertical Slitter for Tubular Fabrics

Vertical Slitter for Tubular Fabrics

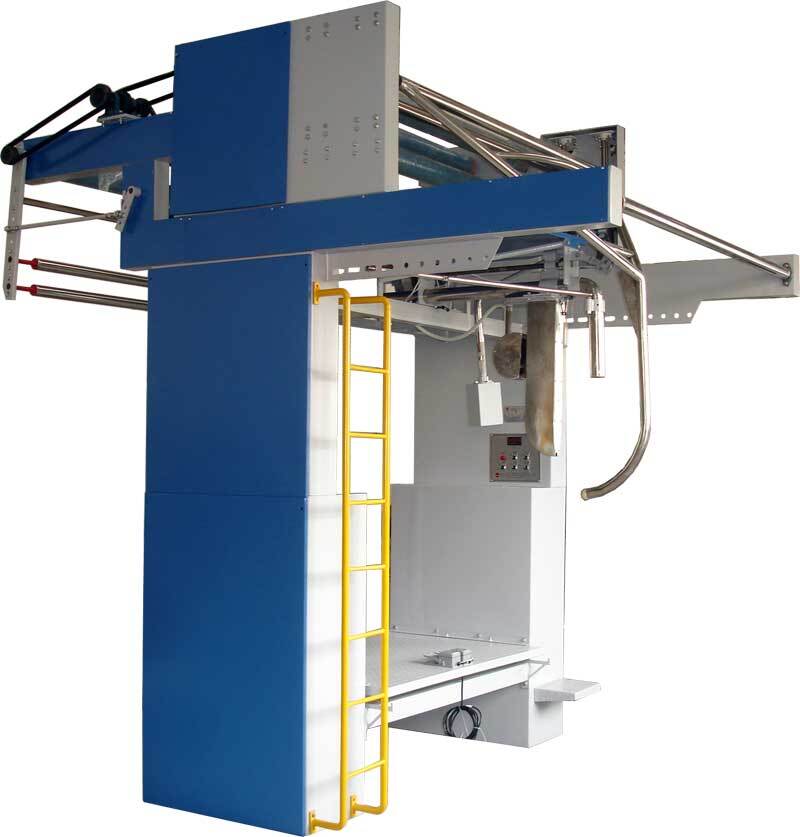

Model: XVS-A2200  Automatic Tubular Fabric Vertical Slitting Machine

It's suitable for rapid slitting on tubular fabric of cotton, polyester, vertical fabrics loading model and both dry and wet fabric can be operated.

Main Features:

- The fabric guider is driven by separate motor to control forward and reverse turn.

- The fabric width adjustment and the blade position are driven by a mini motor.

- The tension of the fabric can be minimized for no crease and crimping of the fabrics.

- Triangle fabric expanding frame

- Blade device

- The fabric slitting speed can be controlled by inverter for convenient operation.

Technical data:

Working width: 2200mm

Working speed: 0-90m/min

Power consumption: 4.75kw, 380V/50Hz

Fabric loading and unloading device

Fabric loading in tubular and unloading in open-width

Dimension: L2800 X W 2800 X H3800mm
