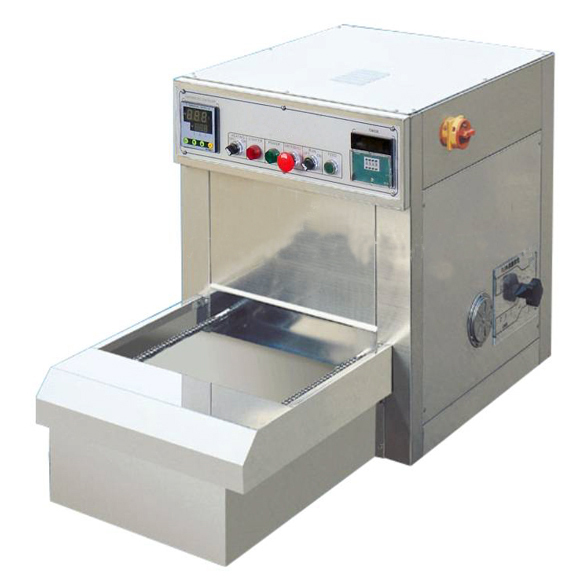

Stenter and dryer for Laboratory

Mini Stenter and dryer for Laboratory

Feature:

1. Easily operation: after setting can running automatically.

Auto feeding---- Auto time counting--- Auto output and bell

2. Maximum working temperature is 250 degree

Specifications:

1. Sample fabric dimension: 36 x 42 cm

2. Temperature control system: working temperature : 20-250 degree, electrical heating: 6kw

3. Time controller: from 1 second to 9990 seconds, automatic shut off

4. The blade cycle: 1/8 hp , 3 phaze motor

5. Upper and down air volume can be adjusted

6.Pin board:

   Single pin board: pin board are placed at the left and right side.

   Double pin board: pin board are placed at the left, right, front and back side

7. Voltage: 380V, 3phase

8. Dimension:     1320mm x 650mm x 850mm
