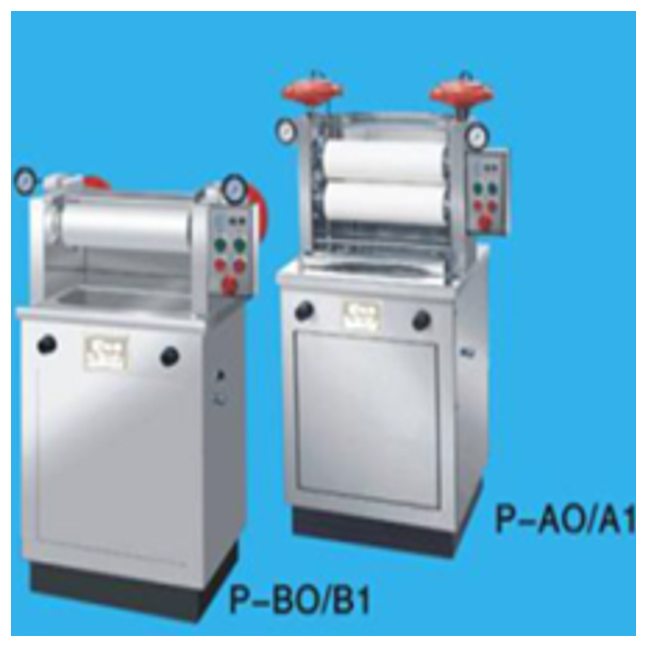

Horizontal Padder
Application:
1. Pick cup rate can be adjusted according to onsite rate.Accurate pad dyeing and resin formulation can be achieved at the same time
2. This machine can be used for finishing chemical concentration testing.
Specifications:
1. Rubber coated roller diameter is 125mm, length is 450mm.
2. The rollers using solid steel shaft, outside cover with NBR rubber, precision finish grind, hardness is 70 degree, can support press up to 6kg/cm2
3. 2 sets of pressure meter, 2 sets of pressure adjust valve, precision 0.1kg/m2
4. Voltage: 380V/50HZ
5. Dimension: 840mm x 740mm x 1100mm
