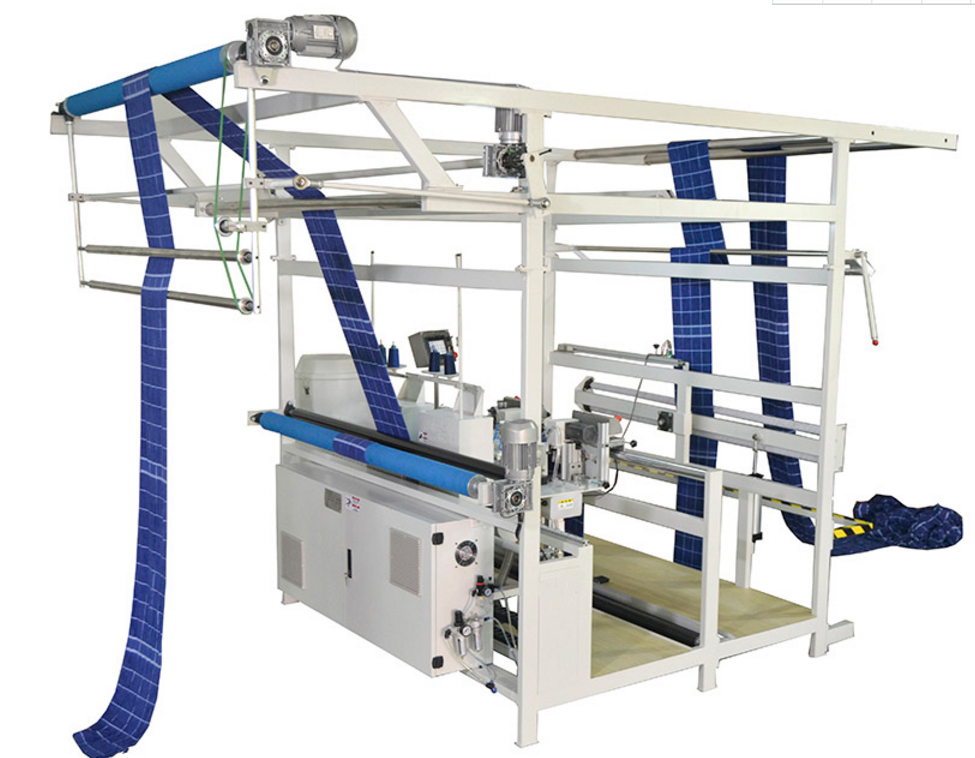

Longitual Hemming Machine for Towel
The hemming machine is designed for continuous towel hemming. Designed Speed is subjected to stitching distance,
20M/Min. is calculated based on Stitching distance 6stitch/Inch. |
| The actual running
speed may lower when stitching distance set higher. Fully automatic. |
Compressed Air supply: 6-8Bar
Machine consists:
| -2
SETS Tracing device driving motor 380V，50HZ,0.18 | | -2 sets Edge Cutter
driving motor 220V，50HZ,0.09KW | | -1 set Suction
Blower with dust collector | | -2 sets Hemming
device (L+R) suitable for 6-7mm Hemming | | -2 sets Edge cutters
(L+R) | | -1 set dust
cleaner | | | | | | | | 2) Control Cabinet: | | | | | | | -1 set Control
cabinet | | -1 set LCD touch
screen controller | | -1 set PLC with
Program | | -2 sets Frequency
inverter for Sewing head speed control | | -1 set Frequency
inverter for Unloading speed control | | -1 set Frequency
Inverter for Lay out Plaiter control | | -2 set Frequency
inverter for Fabric press roller speed control | | -1 set completely
set Relay, Breaker, Contactor and main switch | | -1 set completely
set pneumatic control components | | -1 set Alarm device | | -2 set Thread Broken
sensors |
|
|
|
|
|
|
