Infrared Dyeing machine for Labrotory
Application:
It's used for simulate the dyeing process in actual produciton, even applied for the small-batch production. It use infrared heating technology, instead of traditional heating system to avoid uneven heating for beakers.
Features:
- Easy to operate. The stained beaker can take out separately, not at the same time. Saving time.
- A variety of dyes, auxiliaries and the characteristic test, such as dispersion, dye bath ratio, tempeature, PH dependency and other tests.
- Especially recommended for using in sub-sampling test temperature. To select the most appropriate combination of dye and then grasp the heating curve of the best mass production, improve the quality and efficiency.

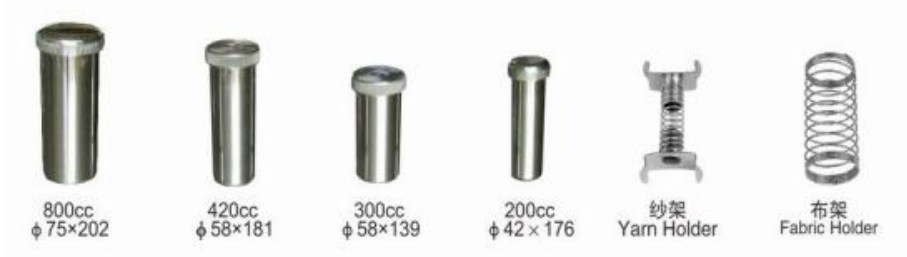

- Diffrenet size beakers for selection to meet different requirement.
- Capacity: beaker volume: 150ml-420ml, fabic weight can from 4g-20g or more
- Humanized design, durability and convenient maintenance.
Technical data:

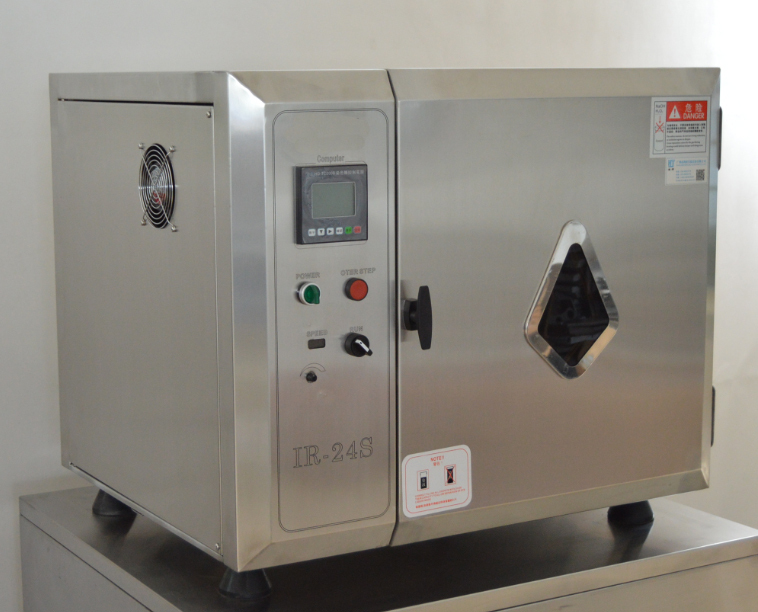

1. Model: IR-24S
2. No. and volume of beaker : 24 * 420ml. according to customer requirement.
3. Tempeature controller: TC200B keyboard screen, 99 programs, 99 steps per program
4. Tempeature range: room temperature - 135 degree +/- 1 degree
5. Heating rate: 0.1-3.5 degree/min
6. Rotation speed: 10-56 rmp/min
7. Cooling system: Air cooling
8. Power supply: 3phase/AC, 380V/50Hz
9. Power consumption: 7KW
10. Dimension: 800*680*700mm
