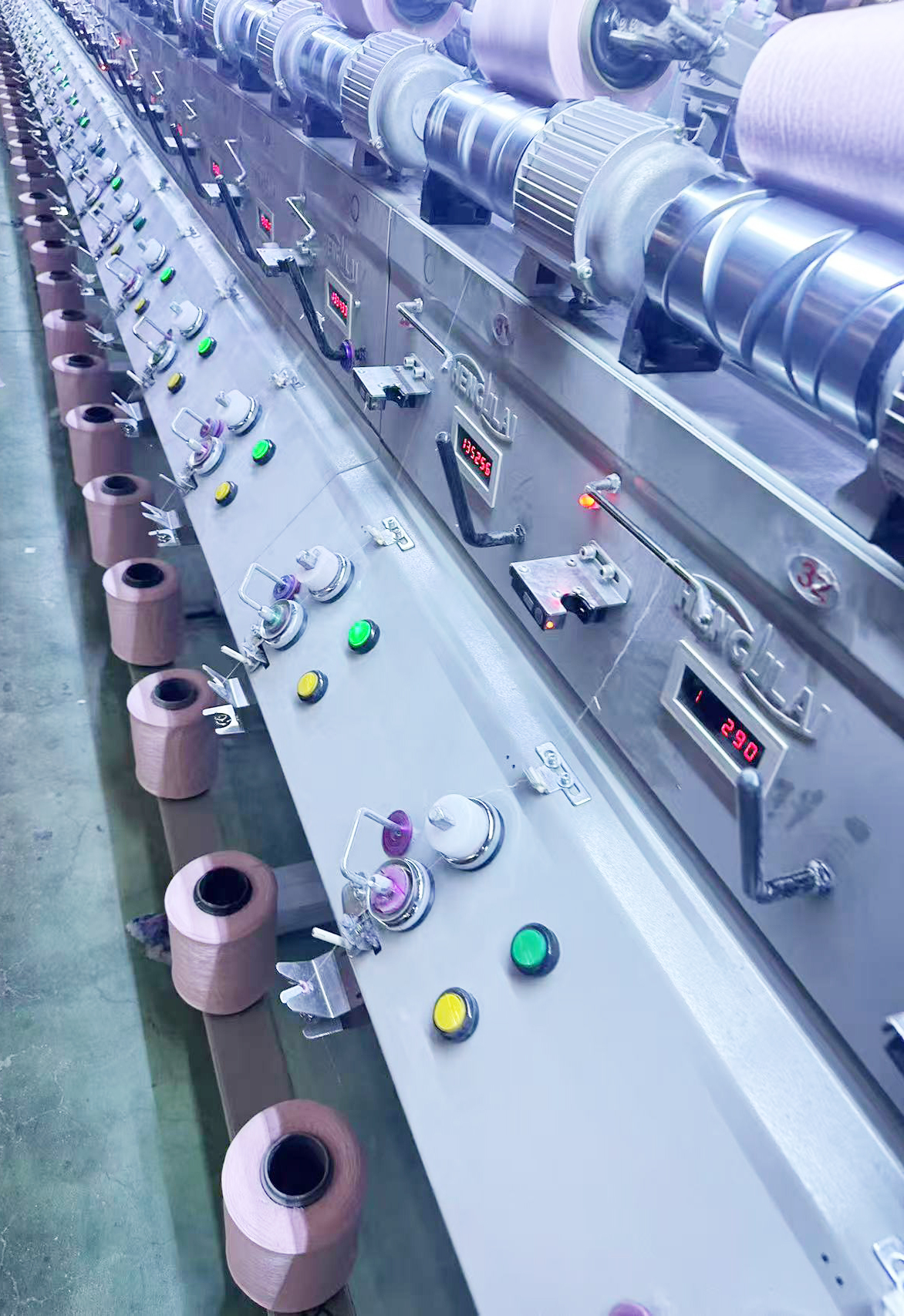

High Speed Hard Winding Machine for Yarn

Hard winding machine are commonly used in post-dyeing processes.

Features:

1. Wearable metal mandrel support.

2. Easy opening center of cone holder is easy for collecting the finished packages.

3. Yarn inlet/outlet has ceramic to protect yarn quality from friction.

4. The grooved drum has anti-dust, anti-twist system which can avoid dust accumulation and protect the operating bearings.

5. The machine is double side with 12 spindles for each section. Many section can be put  together (Max. 13 sections, 156 spindles)

6. Rotating pin and counterweight yarn brake can control winding tension freely.

7. Spring holder pressure balance system will ensure even winding density during the whole winding process.

8. Electric turning waxing system to ensure uniform waxing

9. The photoelectric length measuring device ensure the exact number of winding meters for  each spindle.

Specifications

Grooved drum: O/D82mm, pitch 2.5

Configuration: 12 spindles/section

Motorization: One AC motor per spindles, and controlled by inverter

Max. speed: 1100m/min

Traverse standard: 144mm

Max. packages size: O/D 260mm

Balancer: The winding pressure can be controlled by balance of spring

Machine size : L2128 x w939 x 2240mm/section=12 spindles

Option:

1. conveyor for yarn

2. Air splicer

3. Over head blower and sucker
