High Speed Hard Winding Machine for Yarn

High Speed Hard Winding Machine for Yarn

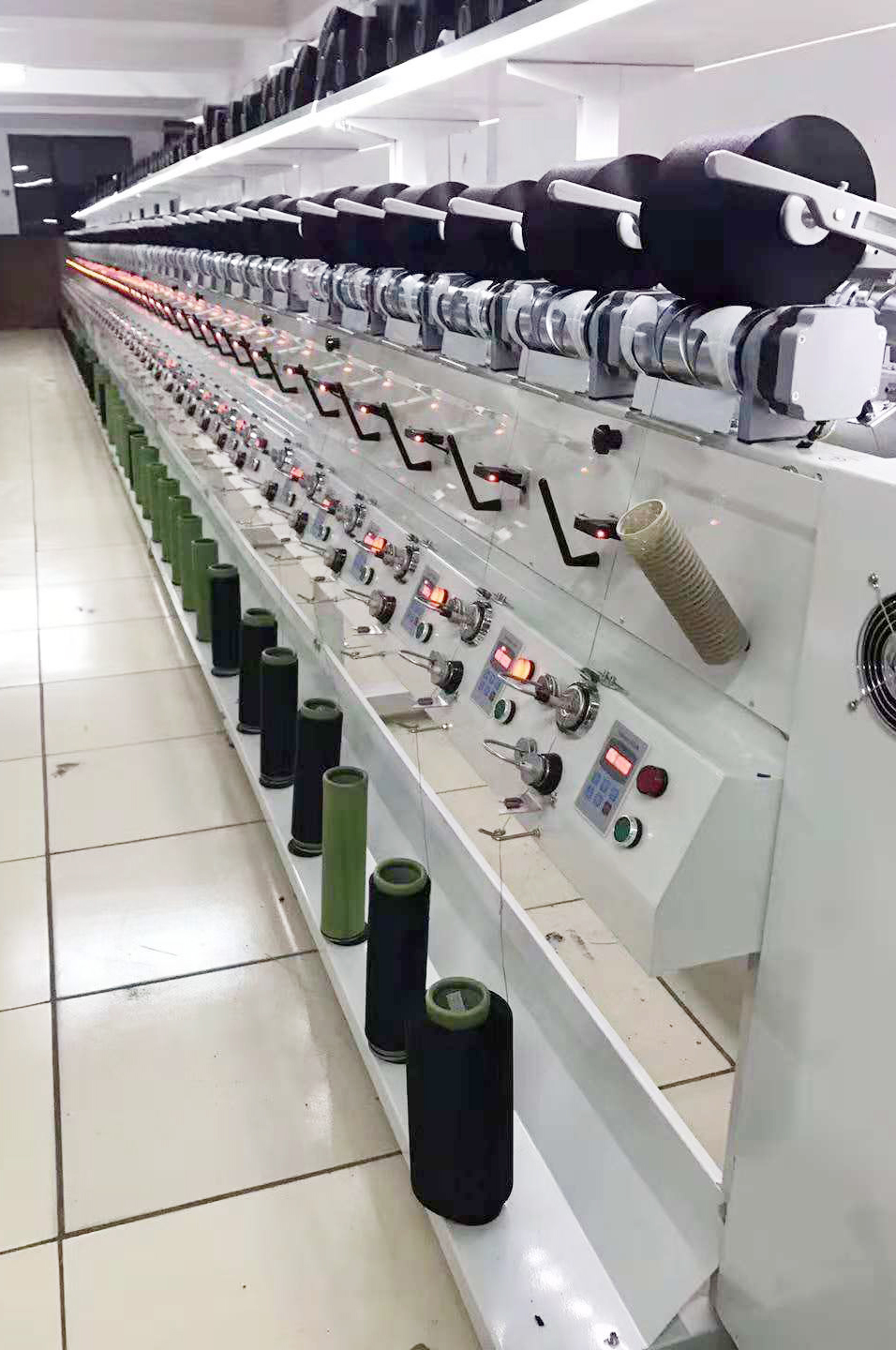

Hard winding machine controlled by durable computer,  which used for cone to cone hard package, used for knitting machine, shuttle loom, warper, hosiery machine. The winding speed is controlled by computer. It has easy adjusting radial anti patterning system. The advanced yarn clearing and tension system with photoelectric yarn detecting can avoid yarn knotting and twisting.

Precise and sensitive speed testing system can ensure even winding length (weight). The electric turning waxing       machine can ensure the quantity and evenness. It is quite suitable for winding yarn of cotton, flax, silk and chemical fiber.

Features:

1. Wearable metal mandrel support.

2. Easy opening center of cone holder is easy for collecting the finished packages.

3. Yarn inlet/outlet has ceramic to protect yarn quality from friction.

4. The grooved drum has anti-dust, anti-twist system which can avoid dust accumulation and protect the operating bearings.

5. The machine is double side with 12 spindles for each section. Many section can be put  together (Max. 9 sections, 108 spindles)

6. Rotating pin and counterweight yarn brake can control winding tension freely.

7. Spring holder pressure balance system will ensure even winding density during the whole winding process.

8. Electric turning waxing system to ensure uniform waxing

9. The photoelectric length measuring device ensure the exact number of winding meters for  each spindle.
